I've started my adventure to build a Van's Aircraft RV14a. For several years, I've been planning to build an Experimental (homebuilt) airplane - once retired.
But first, I needed to get my Pilot's License. (Kinda key !) So... first things first: I retired March 2014 from Caterpillar - and started flying lessons in the Summer of 2014. Soloed a day after Christmas, and got my Private July 2015. Shop set up, tools acquisition, and practise kits during Fall launched me into my build starting Dec 31, 2015 !

I've chosen to build the RV14a since it's about 10% larger than Van's prior models - so it fits my 6'4" frame well. Van's is well known for great value & outstanding flying qualities. It's been a no brainer decision for me. A tour of their facilities and demo flight in Oct 2013 clinched the deal. My wife - also a pilot - exclaimed after her demo flight "retire NOW so you can build one of these". The RV14a fits my mission of a good compromise between cross country & aerobatics. Plus...I fit, too.

So far, one month into building, it's been rewarding. Very challenging, but certainly a learning experience. The builder community is terrific - as is Van's tech support. I'm finished with the Vert Stab and Rudder (Jan 2016). So... with a 5 month delivery lead time, I've ordered the Quick Build Wings and Fuselage.

I hope this blog assists other new builders, just like several others have been valuable to me. Plus it will serve to document my build step by step. Please drop me a line via the "contact me" form on lower RH margin.
Update: April 2020 relocated to Wickenburg, Az to escape Illinois winters.

Saturday, January 12, 2019

Firewall Forward Kit - Propeller

Canopy Harness and Propeller & Spinner ( 3 hrs )

Added Wht/Blk wire with Molex male pin to Canopy Harness for Pin #7 position to connect to 3rd wire for Red LED and White LED strips.   Added silicone at two places where canopy latch warning wires enter and exit canopy frame on LH side.   Started Sect 44 Spinner & Propeller w/ Steps 1 & 2 at 44-02: Spinner Plate and Doubler Ring.   Good to get back to working on aluminum vs wires.
Bolts hold doubler in position to match drill #30 holes.
Marked cut line on Spinner Plate

drilled and cleco'd

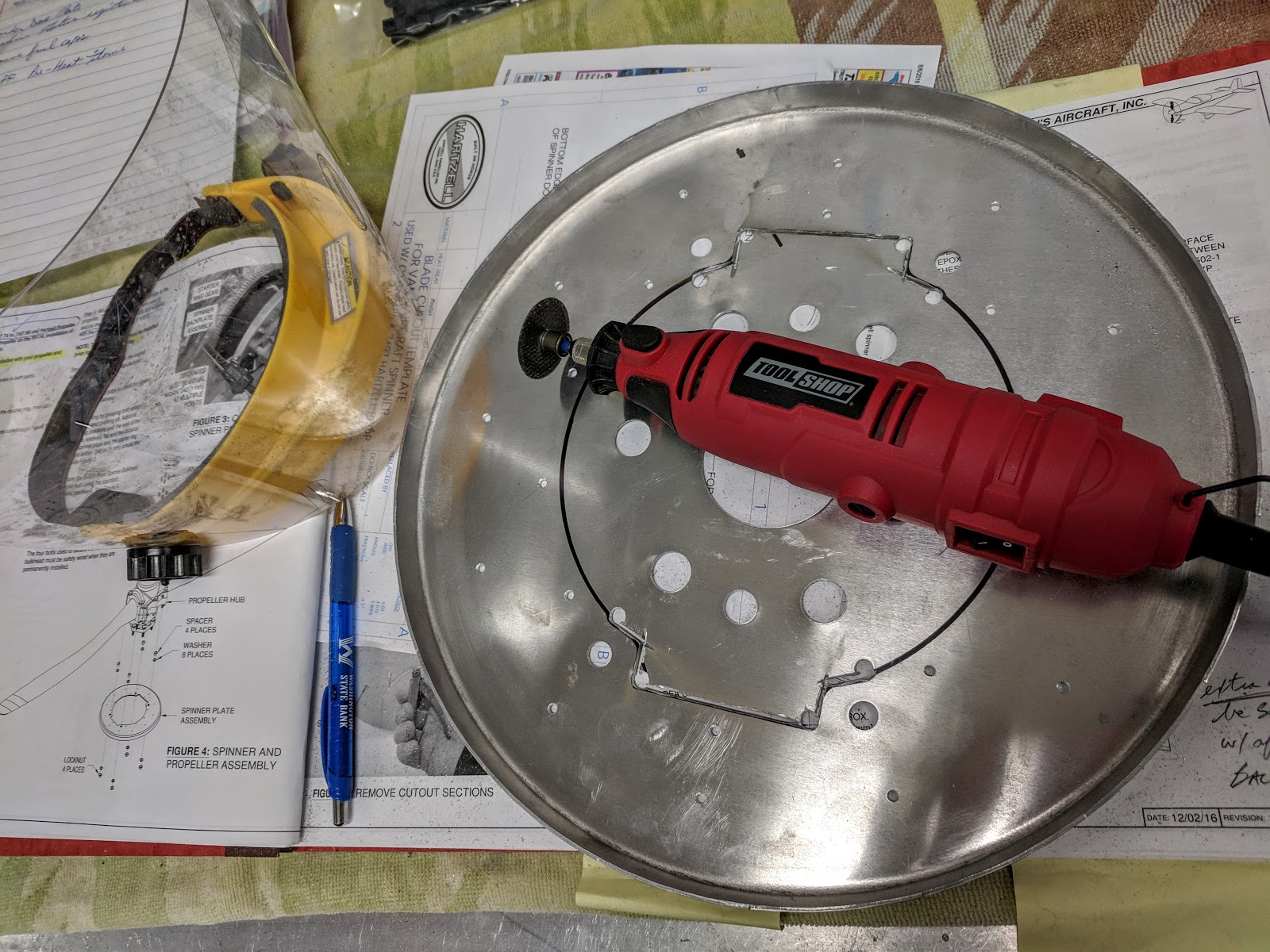

Lots of deburring, then cut center out of Spinner Plate.
