I've started my adventure to build a Van's Aircraft RV14a. For several years, I've been planning to build an Experimental (homebuilt) airplane - once retired.
But first, I needed to get my Pilot's License. (Kinda key !) So... first things first: I retired March 2014 from Caterpillar - and started flying lessons in the Summer of 2014. Soloed a day after Christmas, and got my Private July 2015. Shop set up, tools acquisition, and practise kits during Fall launched me into my build starting Dec 31, 2015 !

I've chosen to build the RV14a since it's about 10% larger than Van's prior models - so it fits my 6'4" frame well. Van's is well known for great value & outstanding flying qualities. It's been a no brainer decision for me. A tour of their facilities and demo flight in Oct 2013 clinched the deal. My wife - also a pilot - exclaimed after her demo flight "retire NOW so you can build one of these". The RV14a fits my mission of a good compromise between cross country & aerobatics. Plus...I fit, too.

So far, one month into building, it's been rewarding. Very challenging, but certainly a learning experience. The builder community is terrific - as is Van's tech support. I'm finished with the Vert Stab and Rudder (Jan 2016). So... with a 5 month delivery lead time, I've ordered the Quick Build Wings and Fuselage.

I hope this blog assists other new builders, just like several others have been valuable to me. Plus it will serve to document my build step by step. Please drop me a line via the "contact me" form on lower RH margin.
Update: April 2020 relocated to Wickenburg, Az to escape Illinois winters.

Tuesday, May 1, 2018

Avionics

Common Fuselage Harness  cont'd  ( 5 hrs )

Cont'd installing WH00125 Right Common Fuselage Harness.  Disappointed in Vans Prod Support response:  apparently earlier version of RV14's do have an open panel adjacent to center tunnel - but it's been changed for unknown reason(s).   Ultimately had to cut panel out & deburr edges.   Then filed notches and opposite side of holes to enlarge approx 1/8" (measured holes w/ notches first, and not possible for connector to be angled through).   Very challenging even with these tweaks, but finally passed connector through all 3 holes in ribs to joystick, including inserting snap bushings.   Wow !  Vans missed design for assembly in this area...   [Other option was to remove all 10 pins from connector, and re-assemble after passing wires only.   I chose not to do that to avoid damage to micro Molex pins - prior experience shows that's a risky option.  Plus I purchased a complete harness from Stein Air, professionally assembled !   ]

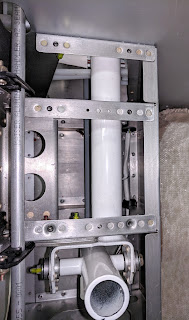

created template, then used hole saw in corners.

deburred, ready to try...

success.   12 pin micro molex connector installed
onto joystick.    And... I have to do other side too.
top view.  Even with opened panel, still
awkward reach w/ minimal hand clearance.


Close up of inboard snap bushings, and next rib's snap bushing.
Ground wire not yet attached to next outboard  rib...
